200A Automated Rotary Plating Machine
| Model | 200A | 300A | 500A | 800A | 1000A |
| Hook size | φ12*800mm | φ14*800mm | φ16*800mm | φ18*800mm | |
| Weight | 5kg | 5.4kg | 6kg | 7kg | 8kg |
| Load weiht | ≤25kg | ≤30kg | |||
| Input voltage | 220V 1P/50Hz Customiz | ||||
| Size | L355*W160*H 225mm | ||||
| Rotation speed | 4~50R/min Adjustable | ||||
| Copper hooktype | Upright or removable type, length can be xustomized | ||||

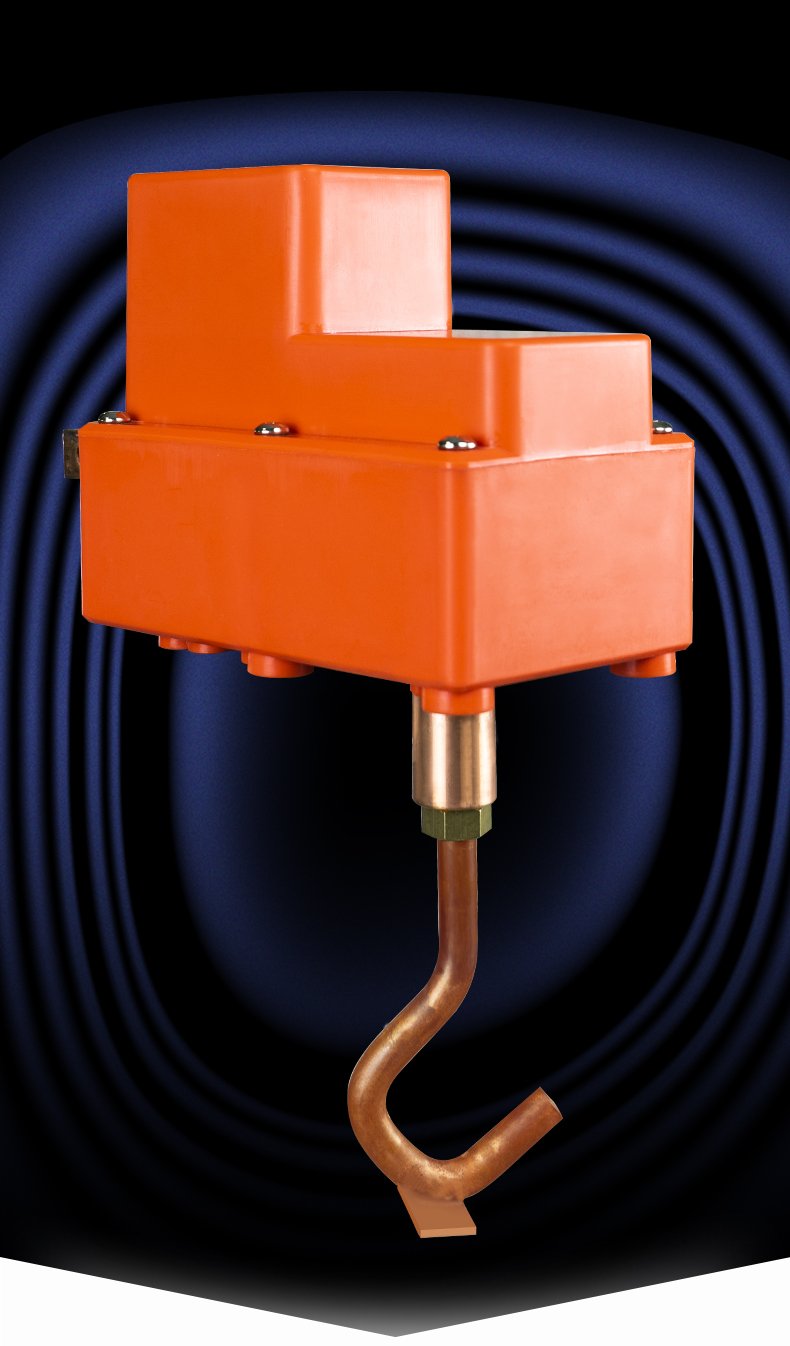

Automatic rotary electroplating machine
Conductive column sealed assembly, mercury does not leak
Customizable for various power models ranging from
200~1000A
Equipped with current display function
| Pointer model No separate power supply required |
Digital display model Requires independent DC 18–24V power supply |
| Automatic electroplating line rotary electroplating machine Transportation and use without spilling mercury |
||||||
 |
||||||
| High conductivity |
| | High-purity mercury |
| | Fast heat conduction | ||
 |
||||||
| Premium motor |
| | Leak-proof design | | | Thickened metal gear | ||
| Ordinary plastic gears are prone to wear and tear and have poor temperature resistance. | Kehong Metal Gears feature high mechanical strength and long-lasting durability. |
Side view

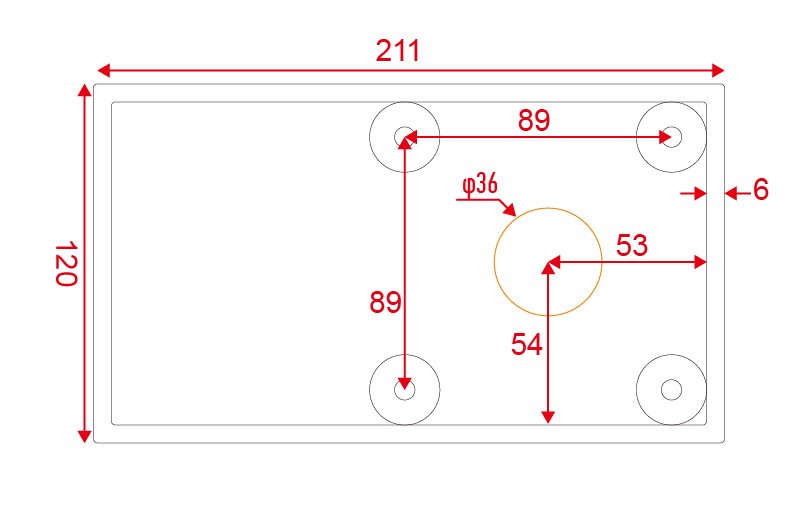

Base Picture
