High frequency rectifier
10000A available from stock, supporting customized higher power
Configuration of overcurrent, overpressure, overheat, short circuit, phase loss protection mode
Customizable for various power models ranging from
50~50000A
Circuit board
Self produced main control circuit board and drive circuit board with split structure; using high-end components;
The port is connected by a computer cable. Accurate control.
Module
Adopting high-performance IGBT imported driver chips ensuring stable operation and quality assurance
Low-temperature signal acquisition design
Localized conductive temperature drop Reduce conductive impedance
Auto Start/Stop, energy-savingdurability
The pure copper motor fan features automatic start-stop tech-nology, making machine operation effortless.
Schottky diode
Low voltage drop, fast recovery
Large cross-sectionconductor
Conductive board adopts T2 purple copper bars with higher conductivity coefficient.
High-precision oscilloscope inspection
Comprehensive pre-production testing eliminates potential quality risks,
ensuring every piece of equipment meets specifications.
Infrared thermal imaging camera inspection
Eliminate potential quality issues to ensure that every piece of equipment meets the required standards
Every small change is a giant leap forward
 |
||
| Ordinary thermal grease poor thermal conductivity | High quality heat dissipation paste with a thermal conductivity of 6.0W | |
 |
||
| Insulation layer of ordinary transformers is relatively simple | New transformer adopts a double-layer insulation process | |
 |
||
| Fast recovery diode voltage drop 0.8~1.1V, recovery time 35-85ns | Copper lead, titanium shell absorption, service life 10-20 years | |
 |
||
| Ordinary thermal grease poor thermal conductivity | Schottky diode, voltage drop 0.3~0.6V, recovery time<10ns | |
 |
||

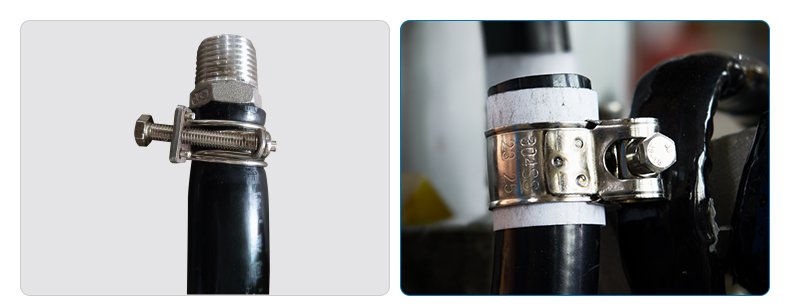

| Old style throat clamps are prone to corrosion and rust | New throat clamp has along-term and reliable tightening effect | |
Specifications
| Mode | M·S 12V-10000A |
| Output mode | CV & CC conversion |
| Output current | 0-10000A Digital display adjust |
| CV/CC acc | ≤ 1% |
| Input voltage | On demand production |
| Cooling mode | Air-cooled |
| Water pressure | 0.30Mpa |
| Water supply | 6.0M³/H |
| Load type | Class II |
| Size | L1510 * 800 * H1260mm |
| Weights | 360.0KG |
| Load rate | ≤ 90% |
| Running state | 24 hours full load operation |
| Inverrter freq | 250KHZ |
| Ambient temp | -10~50°C |
| Output frequency | 20~35KHZ |
| Ambient hum | ≥ 80% |
| Ripple factor | 2.89 |
| Power factor | 0.89% |
| Transformer | Nanocrystalline cores, enamelled copper wire |
| Conductor | T2 copper, copper enamelled wire |
| Output power | 0~120KW |
| Waterproof rating | IP54 |
| Output voltage | DC0-12V or customi |
| Transformer | Nanocrystalline cores, enamelled copper wire |
| Conductor material | Automatic protection against overcurrent, overvoltage, phase loss, 70°C. |
| Operation mode | Remote control box to operate voltage current or timing, remote cable length 5 meters |
| Output voltage | DC0~1000V adjustable, output current: 0~30000A, digital display adjustable |
| Main components | German Infineon driver chips, Infineon IGBT, Chinese SL Schottky, rectifier bridge |
| Control circuit | Self-produced split motherboard, driver board, ports are connected by computer wires |
