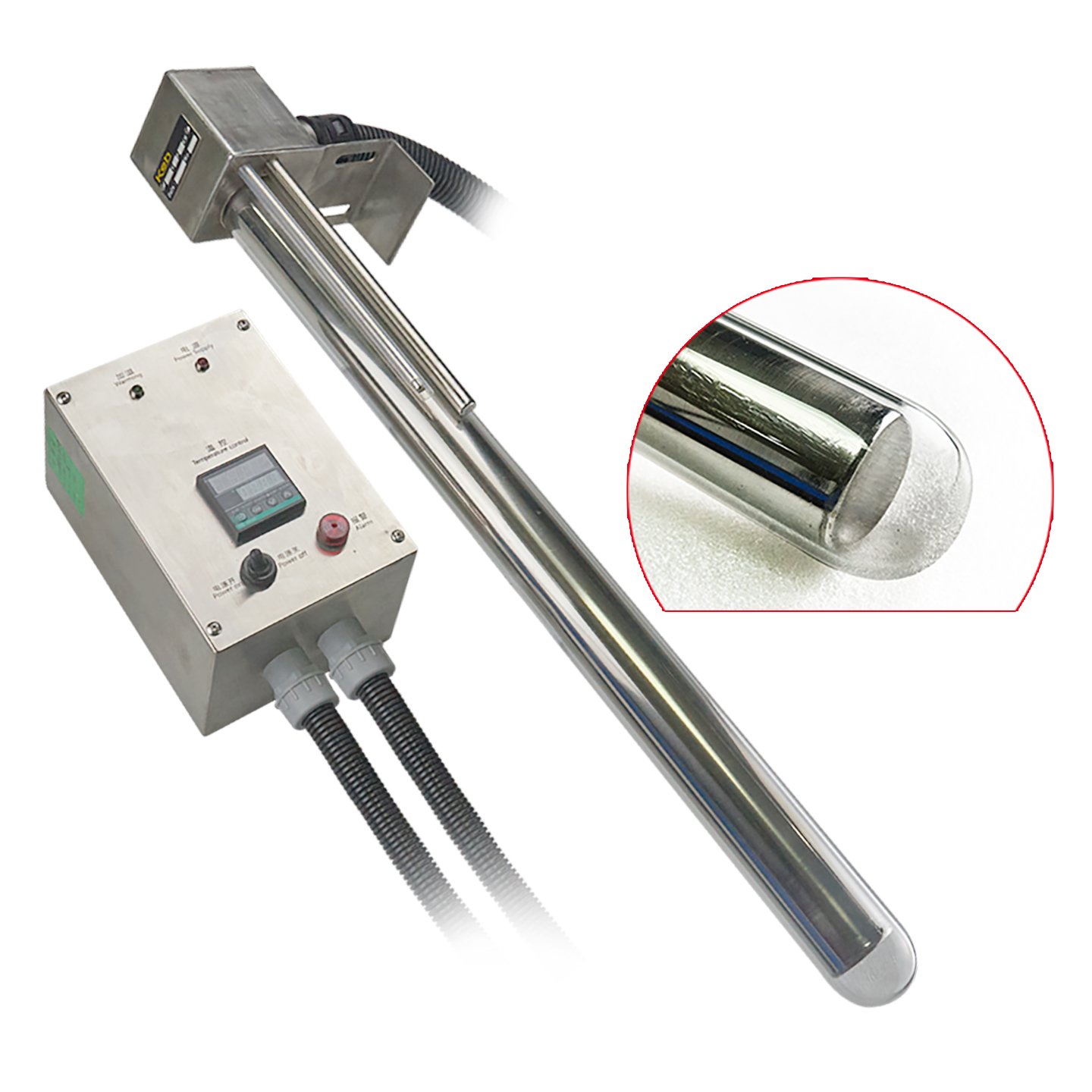

2-3kW Quartz heater
| Model | 1kW | 2kW | 3kW | 4kW | 5kW |
| Rated voltage | 220V 1P /380V 3N | ||||
| Hot zone | 250mm | 350mm | 550mm | 650mm | 750mm |
| Unheated zone | 200mm | ||||
| Tube diameter | φ50mm | ||||
Anti-dry burning 3-in-1 quartz heater
Acid-resistant, strong acid solutions
Secure it and turn on the power use
Simple Safe
Quartz outer tube is not easily plated
Low surface power design ensures durability and protects chemical solutions.
| ① Not easily plated (KeHong Products) | | | ② Easy to plated (Standard Products) |
| Heating, temperature control, Anti-dry burning Teflon safety 3-in-1 heater |
||||||
 |
||||||
| Liquid level sensing | | | Temperature sensing | | | Temperature control | ||
 |
||||||
| Fault alarm | | | Flame-retardant materials | | | Stainless steel material | ||
Dual protection
①Liquid level sensing
②Temperature sensing
When the tank liquid level falls below the liquid level sensor zone ①
or the heating tube temperature sensor
② detects an abnormality, the sensor immediately cuts off the power supply and
triggers an audible and visual alarm to prevent fire.
Heating automatically resumes once the liquid level recovers and the temperature drops.
Temperature ControllerSet the required temperature for the bath solution and start heating.
When the bath solution reaches the set temperature,heating stops immediately.
When the bath solution temperature falls below the set point, heating starts immediately.
Made with quality materialsEvery product undergoes rigorous quality control at every stage.v
solely to ensure that every customer receives a satisfactory product
| Heating, temperature control, Anti-dry burning Teflon safety 3-in-1 heater |
||||||
 |
||||||
| Heated inner tube Seamless stainless steel pipe |
||||||
 |
||||||
| Rapid heat transfer High thermal conductivity thermal efficiency high |
||||||
 |
||||||
| Safety Junction box Flame-retardant epoxy resin |
||||||
 |
||||||
| Glue head Large cross-sectional area Does not generate heat |
||||||
