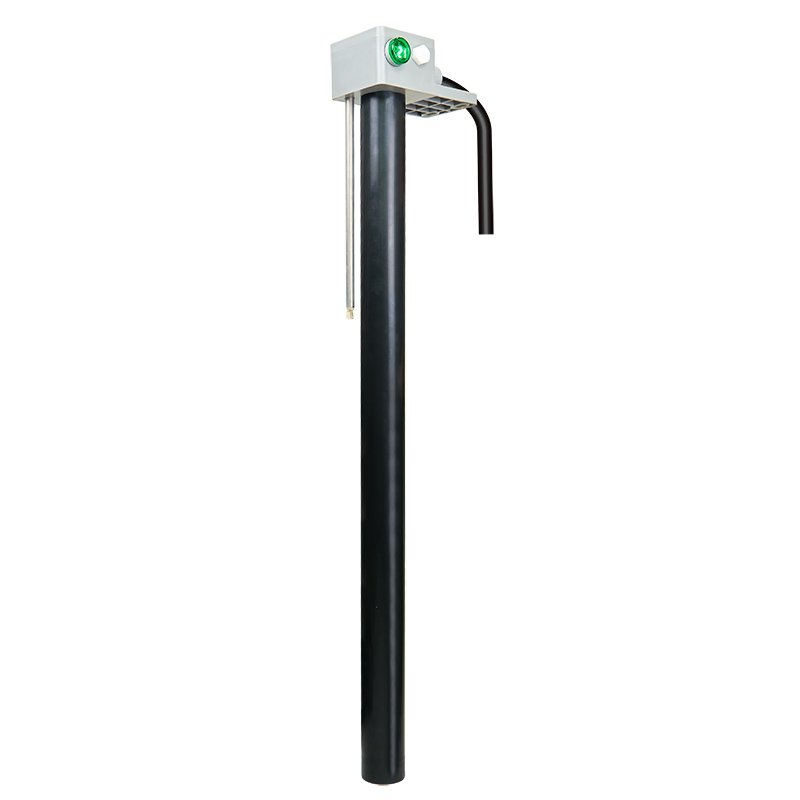

2-3-4-5kW Non-drying hearter
| Model | 2kW | 3kW | 4kW | 5kW |
| Rated voltage | 220V 1P /380V 3N | |||
| Hot zone | 350mm | 550mm | 650mm | 750mm |
| Unheated zone | 200mm | |||
| Tube diameter | φ50mm | |||
| Material | Ti / 316L Teflon-coated | |||
Won’t burn dry Won’t catch fire
Built-in adjustable temperature control (optional)
high cost-performance ratio
Secure it and turn on the power use
Simple Safe
Also to save space and make it convenient to use
Integrated design of electric heater and temperature controller, compact size, low application cost
| Temperature control function (Optional) |
DNA won’t catch fire
When water is insufficient, the surface temperature remains below 165°C—well below the ignition point—ensuring no dry-firing occurs.
Surface dehydration temperature
① Non-drying heater 165℃
② Standard heater 700℃
Low surface power designCorrosion resistance lifespan of the electric heater doubles.
Does not damage the composition of the plating solution.
Surface dehydration temperature① 316L / Titanium Teflon-coated
② Teflon-coated
| ① Temperature Display | ② Temperature Detection | |
| ③ Temperature Adjust | ④ No limit on cable length |
| Heating, temperature control, Anti-dry burning Teflon safety 3-in-1 heater |
||||||
 |
||||||
| Heated inner tube Seamless stainless steel pipe |
||||||
 |
||||||
| Rapid heat transfer High thermal conductivity thermal efficiency high |
||||||
 |
||||||
| Safety Junction box Flame-retardant epoxy resin |
||||||
 |
||||||
| Glue head Large cross-sectional area Does not generate heat |
||||||
